THP/HL-L | THP/HL

NOTHING IS TOO HEAVY

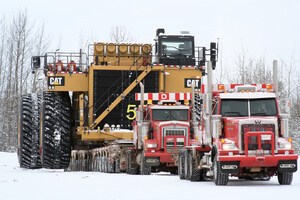

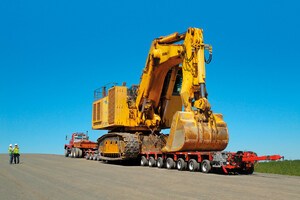

The high axle loads and the extreme bending moment offer a wide specter of use, when it comes to heaviest cargos in uneven terrain. THP/HL-L and THP/HL are your first choice when transporting mining equipment to its destination. With different variants of axle spacings you can be sure, to fulfill all legal requirements. The modules can not only be pulled by truck, but also combined with Goldhofer’s self-propelled heavy duty modules to ensure maximum flexibility and maneuverability under the most challenging conditions.

SEND REQUEST NOW!

Your benefits

Different axle spacing
For legal axle loads on public roads

High bending moment
Enables transport of heavy and compact cargos requiring low axle loads

Also for combination with PST/SL and PST/SL-E
High flexibility for transportation of ultra heavy loads

Technical features

+	Twin tires	245/70 R 17.5
+	Vehicle width	3,200 mm
+	Max. steering angle	± 55°
+	Axle load THP/HL-L THP/HL	26 t at 30 km/h 45 t at 1 km/h
+	Dead weight (4-axles) THP/HL-L THP/HL	11.6 t 14.4 t

Accessories and options

General accessories
+		Kohler diesel hydraulic power pack
+		Kohler gasoline hydraulic power pack
+		Operation panel
+		Cable/radio remote controls and »SmartControl«

Towing equipment and goosenecks
+		Steering swivel arm for single widths
+		Center pulling device for parallel combination (1+1/2)
+		Center pulling device for parallel combination (1+1)
+		Drawbar 2,000 m, 3,000 m, 5,000 m, 7,000 m and 9,000 m
+		Universal gooseneck 26 t, 35 t, 45 t and 52 t

Loading equipment
+		Drop decks
+		Vessel bridges
+		Excavator decks
+		Intermediate spacers
+		Spacer

Turntable
+		100 t / 200 t
+		300 t / 400 t / 600 t ^[1]

Tower adapter
+		RA 2
+		RA 3
+		RA 4

Higher girder bridge
+		»FAKTOR« 5
+		»FAKTOR« 5.5

^[1] 600 t turntables for double width combination only

Downloads

Universally
combinable

Easy Changing
of wheel sets

High bending
moment
