»FAKTOR« 5 | »FAKTOR« 5.5

USED ALL OVER THE WORLD

Especially when transporting extremely heavy loads such as transformers, generators or other industrial components, high girder bridges are frequently in demand and to constantly demonstrate their full capacity in difficult infrastructures e.g. on bridges and other load-sensitive subsoils. Goldhofer's lateral beam bridges have been tried and tested worldwide and always guarantee a very good payload-to-dead weight ratio as well as maximum safety.


SEND REQUEST NOW!

Your benefits
  • Unique ratio between payload and dead weight
  • Compact transport system customized to utilization conditions



  • Tried and tested, safe transport solution
  • High availability even under the most extreme conditions



  • Simple mobilization and shipping
  • Economic delivery to the desired location

Technical features

+   Payload (depending on combination)
»FAKTOR« 5
»FAKTOR« 5.5
500 t
350 t
+   Lift height
»FAKTOR« 5
»FAKTOR« 5.5
1.80 m
1.60 m
+   Load widths
»FAKTOR« 5
»FAKTOR« 5.5
3.00-6.75 m
2.00-6.00 m
+   Load lengths
»FAKTOR« 5
»FAKTOR« 5.5
11.00-17.00 mm
11.00-17.00 mm
+   Axle configurations *
»FAKTOR« 5
»FAKTOR« 5.5
2x12-2x20
2x10-2x16
+   Beam   Lateral beam, vessel bridge

* thereby payload alteration

Downloads

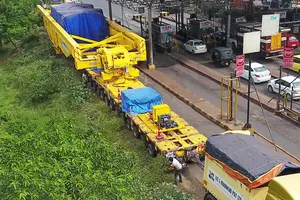

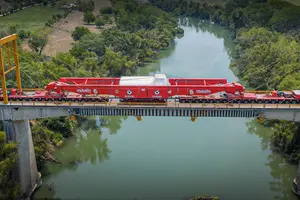

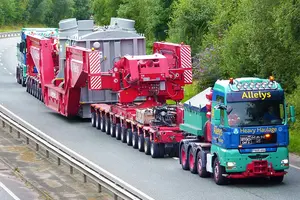

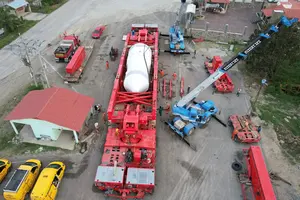

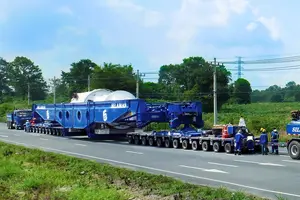

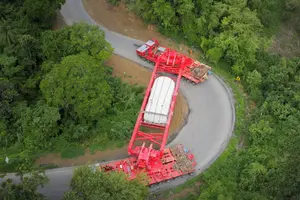

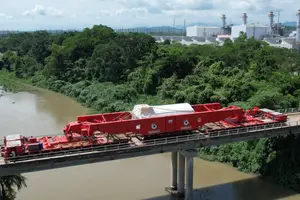

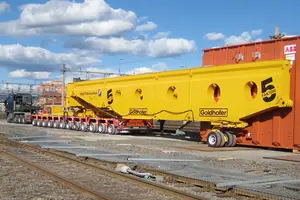

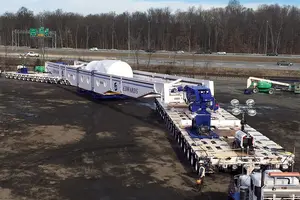

Our high girder bridges in action
